StackedBar Tooltips missordered

   February 24, 2021  1 Comment on StackedBar Tooltips missordered

Hi

I’m now using V2 of the chart.js and it works very great

While using a stackedBar with 3 elements, the top part of the graph is in the bottom of the tooltip
(A pcture is better to understand, here is it)
In My side, datas are declared in the color order ‘blue-gray-green’ so tooltip seems being in the right order

Is it a bug (or a possible enhancement) or is it a missconfiguration by my side ?

If any needs, here is my chart config :

/* DATA TABLE */
var ChartData4 =
    {
        labels : ["<?php echo $CI->langs->gettext(92).' '.$CI->langs->gettext(1); ?>"
                 ,"<?php echo $CI->langs->gettext(92).' '.$CI->langs->gettext(108); ?>"
                 ,"<?php echo $CI->langs->gettext(93).' '.$CI->langs->gettext(1); ?>"
                 ,"<?php echo $CI->langs->gettext(93).' '.$CI->langs->gettext(108); ?>"
                 ,"<?php echo $CI->langs->gettext(94).' '.$CI->langs->gettext(1); ?>"
                 ,"<?php echo $CI->langs->gettext(94).' '.$CI->langs->gettext(108); ?>"
                 ,"<?php echo $CI->langs->gettext(95).' '.$CI->langs->gettext(1); ?>"
                 ,"<?php echo $CI->langs->gettext(95).' '.$CI->langs->gettext(108); ?>"
                 ],
        datasets : [
            {
                label:              "<?php echo $CI->langs->gettext(1); ?>",
                backgroundColor :   "<?php echo getRGBA('blue',0.5); ?>",
                borderColor :       "<?php echo getRGBA('blue',0.8); ?>",
                hoverBackgroundColor:   "<?php echo getRGBA('blue',0.75); ?>",
                hoverBorderColor:   "<?php echo getRGBA('blue',1); ?>",
                <?php echo 'data : ['.$costanalyse['MyProduct']['ProductCat1']['Q1'].',
                                    '.$costanalyse['OtherProduct']['ProductCat1']['Q1'].',
                                    '.$costanalyse['MyProduct']['ProductCat1']['Q2'].',
                                    '.$costanalyse['OtherProduct']['ProductCat1']['Q2'].',
                                    '.$costanalyse['MyProduct']['ProductCat1']['Q3'].',
                                    '.$costanalyse['OtherProduct']['ProductCat1']['Q3'].',
                                    '.$costanalyse['MyProduct']['ProductCat1']['Q4'].',
                                    '.$costanalyse['OtherProduct']['ProductCat1']['Q4'].']'; ?>
            },
            {
                label:              "<?php echo $CI->langs->gettext(90); ?>",
                backgroundColor :   "<?php echo getRGBA('gray',0.5); ?>",
                borderColor :       "<?php echo getRGBA('gray',0.8); ?>",
                hoverBackgroundColor:   "<?php echo getRGBA('gray',0.75); ?>",
                hoverBorderColor:   "<?php echo getRGBA('gray',1); ?>",
                <?php echo 'data : ['.$costanalyse['MyProduct']['ProductCat2']['Q1'].',
                                    '.$costanalyse['OtherProduct']['ProductCat2']['Q1'].',
                                    '.$costanalyse['MyProduct']['ProductCat2']['Q2'].',
                                    '.$costanalyse['OtherProduct']['ProductCat2']['Q2'].',
                                    '.$costanalyse['MyProduct']['ProductCat2']['Q3'].',
                                    '.$costanalyse['OtherProduct']['ProductCat2']['Q3'].',
                                    '.$costanalyse['MyProduct']['ProductCat2']['Q4'].',
                                    '.$costanalyse['OtherProduct']['ProductCat2']['Q4'].']'; ?>
            },
            {
                label:              "<?php echo $CI->langs->gettext(89); ?>",
                backgroundColor :   "<?php echo getRGBA('green',0.5); ?>",
                borderColor :       "<?php echo getRGBA('green',0.8); ?>",
                hoverBackgroundColor:   "<?php echo getRGBA('green',0.75); ?>",
                hoverBorderColor:   "<?php echo getRGBA('green',1); ?>",
                <?php echo 'data : ['.$costanalyse['MyProduct']['ProductCat3']['Q1'].',
                                    '.$costanalyse['OtherProduct']['ProductCat3']['Q1'].',
                                    '.$costanalyse['MyProduct']['ProductCat3']['Q2'].',
                                    '.$costanalyse['OtherProduct']['ProductCat3']['Q2'].',
                                    '.$costanalyse['MyProduct']['ProductCat3']['Q3'].',
                                    '.$costanalyse['OtherProduct']['ProductCat3']['Q3'].',
                                    '.$costanalyse['MyProduct']['ProductCat3']['Q4'].',
                                    '.$costanalyse['OtherProduct']['ProductCat3']['Q4'].']'; ?>
            }
        ]
    };
/* CHARTS OPTIONS */
var stackedBar_Options={
            type: 'bar',
            options:{
                responsive:true,
                scales:{
                    xAxes:[{stacked:true}],
                    yAxes:[{stacked:true}]
                },
                tooltips: {
                    enable: true,
                    mode: 'label',
                    callbacks: {
                        label: function(tooltipItem, data){
                            var datasetLabel = data.datasets[tooltipItem.datasetIndex].label || '';
                            return datasetLabel + ': ' + Number(tooltipItem.yLabel).toFixed(2) + ' €';
                        }
                    }
                },
                legend:{
                    display: true,
                    position: 'bottom'
                }
            }
        };
/* CHART BUILDING */
        var ctx4 = document.getElementById("canvas4").getContext("2d");
        window.chart4 = new Chart(ctx4,$.extend({},stackedBar_Options,{data:ChartData4}));

Thanks for support

Author: Fantashit

1 thought on “StackedBar Tooltips missordered”

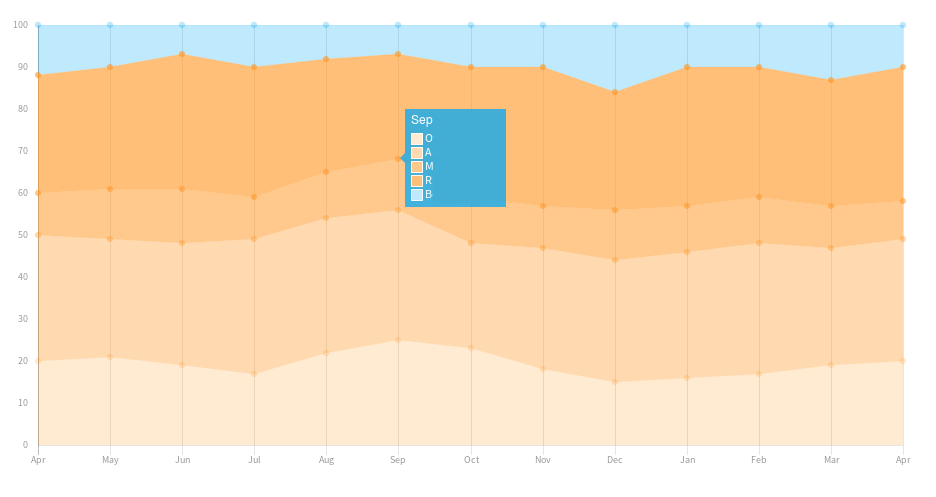

  1. same here :
    graph

    I fixed it but it is not really intuitive…
    tooltips: { itemSort: function(a, b) { return b.datasetIndex - a.datasetIndex },

    Thanks for what you do there 😉
